Style Name: Koleff STANDARD for Ankle Boots
created by: romango
Source: Koleff
Description: Lasting allowance is for glue construction. Subtract 5mm from allowances for welted construction.

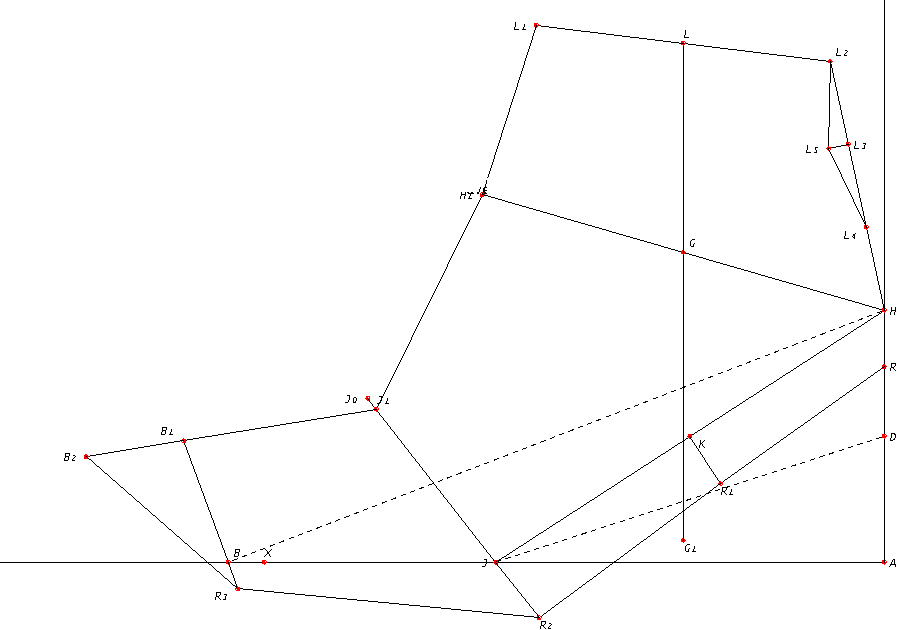

view larger image
3 1/2 in heel ankle boot untested


Operations
1.0 Place origin point A, draw axis
2.0 Place point H on line A-2 at heel_height from A
3.0 Draw line from point H to horizontal axis 2/3 of foot_length label end point J
4.0 Place point X on line J-1 at 1/3 of foot_length from J
5.0 Place point B on line X-1 at toe_allowance from X toe allowance
6.0 Place point D on line A-H at 1/2 of heel_height from A
7.0 Draw dashed line between D and J
8.0 Draw dashed line between H and B
9.0 Draw line at a 110.0° angle from point J on line J-D for 1/3 of ball_girth, label end point J0
10.0 Place point J1 on line J-J0 at 0.5 cm from J0
11.0 Draw line at a 110.0° angle from point B on line A-B for 2/3 of J-J1, label end point B1
12.0 Draw line at a 37.0° angle from point H on line H-B for 1/2 of short_heel, label end point H1
13.0 Draw solid line between H1 and J1
14.0 Draw solid line between J1 and B1
15.0 Extend line J1-B1 for 3.5 cm, label end point B2
26.0 Place point K on line H-J at 1/2 of H-J from J
27.0 Place point R on line H-A at 2.0 cm from H
28.0 Draw line at a -90.0° angle from point K on line J-H for 2.0 cm, label end point R1
29.0 Extend line J1-J for 2.5 cm, label end point R2
30.0 Extend line B-B1 for 1.0 cm, label end point R3
31.0 Draw solid line between R and R1
32.0 Draw solid line between R1 and R2
33.0 Draw solid line between R2 and R3
34.0 Draw solid line between R3 and B2
35.0 Place point G on line H-H1 at 1/2 of H-H1 from H
35.5 Draw Vertical line from point G to horizontal axis label end point G1
37.0 Draw line at a 180.0° angle from point G on line G-G1 for 1/4 of short_heel, label end point L
38.0 Draw line at a 83.0° angle from point L on line G-L for 1/4 of ankle, label end point L2
39.0 Extend line L-L2 for 1/4 of ankle, label end point L1
40.0 Draw solid line between L1 and H1
41.0 Draw solid line between L2 and H
42.0 Place point L3 on line L2-H at 1/3 of L2-H from L2
43.0 Place point L4 on line L2-H at 2/3 of L2-H from L2
44.0 Draw line at a -90.0° angle from point L3 on line L2-H for 0.7 cm, label end point L5
45.0 Draw solid line between L2 and L5
46.0 Draw solid line between L5 and L4
