Style Name: Mens Monk
created by: romango
Source: Romango Shoes
Base Style: The Koleff STANDARD for Men's Shoes
Description: This design is untested, so far

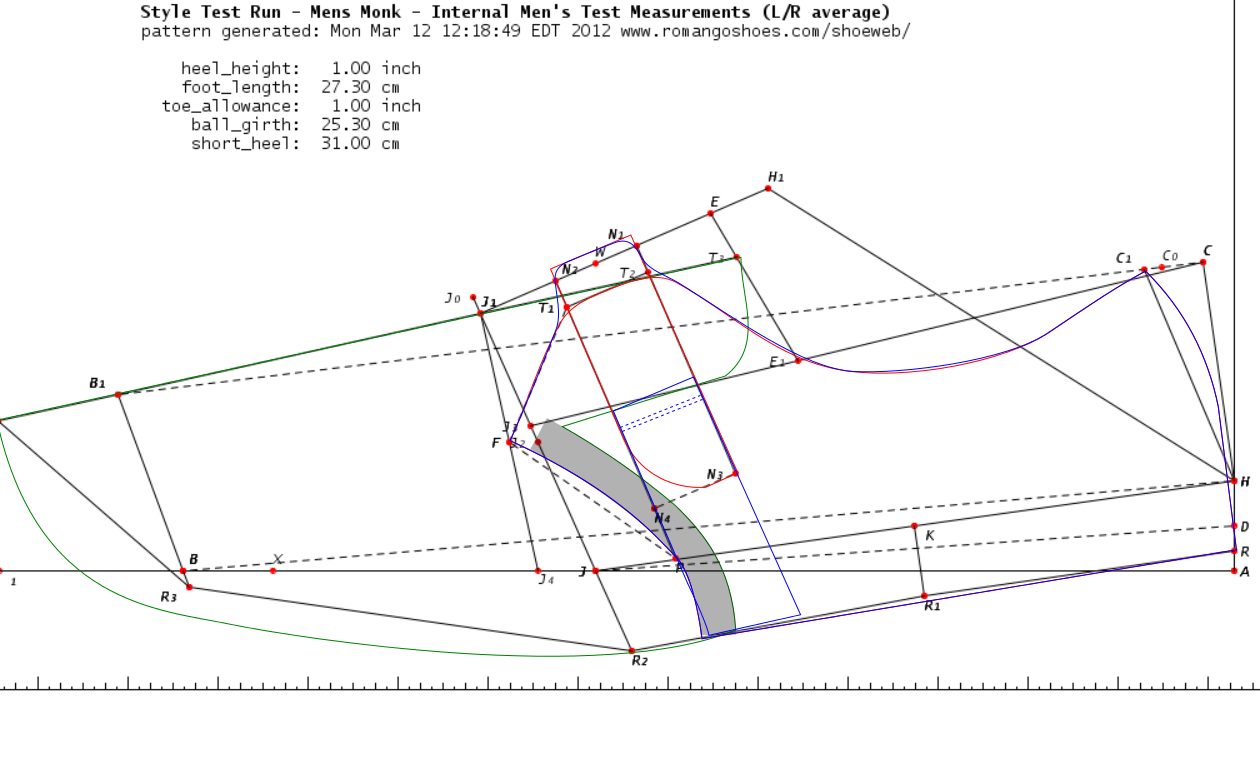

view larger image
Monk


Operations
Base style: The Koleff STANDARD for Men's Shoes show operations
4.0 Place point W on line J1-E at 1/2 of J1-E from J1
6.0 Place point N1 on line W-E at 1.25 cm from W
7.0 Place point N2 on line J1-W at 1.25 cm from W
11.0 Draw line at a 270.0° angle from point N1 on line N1-N2 for 7.0 cm, label end point N3
12.0 Draw line at a 270.0° angle from point N2 on line N1-N2 for 7.0 cm, label end point N4
13.0 Draw dashed line between N3 and N4
14.0 Draw line at a 90.0° angle from point J1 on line J1-B1 until it intersects with line J-B, label end point J4
15.0 Draw line at a 180.0° angle from point N4 on line N2-N4 until it intersects with line J-H, label end point P
16.0 Place point F on line J1-J4 at 1/2 of J1-J4 from J1
17.0 Place point T1 on line N2-N4 at 0.8 cm from N2
18.0 Draw line at a 90.0° angle from point T1 on line N2-N4 until it intersects with line N1-N3, label end point T2
19.0 Draw dashed line between T1 and F
20.0 Draw dashed line between F and P
21.0 Draw line at a 180.0° angle from point J1 on line B1-J1 until it intersects with line E-E1, label end point T3
