| 1.0 |

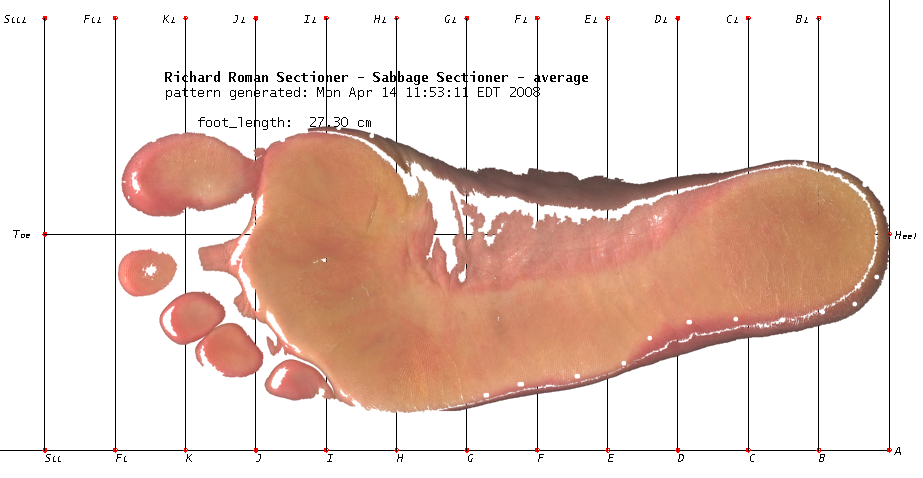

Place origin point A, draw axis |
|
| 2.0 |
Place point B on line A-1 at 1/11 of foot_length from A |
|
| 4.0 |
Place point C on line A-1 at 2/11 of foot_length from A |
|
| 5.0 |
Place point D on line A-1 at 3/11 of foot_length from A |
|
| 6.0 |
Place point E on line A-1 at 4/11 of foot_length from A |
|
| 7.0 |
Place point F on line A-1 at 5/11 of foot_length from A |
|
| 8.0 |
Place point G on line A-1 at 6/11 of foot_length from A |
|
| 9.0 |
Place point H on line A-1 at 7/11 of foot_length from A |
|
| 10.0 |
Place point I on line A-1 at 8/11 of foot_length from A |
|
| 11.0 |
Place point J on line A-1 at 9/11 of foot_length from A |
|
| 12.0 |
Place point K on line A-1 at 10/11 of foot_length from A |
|
| 13.0 |
Place point FL on line A-1 at foot_length from A |
|
| 14.0 |
Place point SLL on line A-1 at 12/11 of foot_length from A |
|
| 15.0 |
Draw line at a 90.0° angle from point B on line A-1 for 6.0 inches, label end point B1 |
|
| 16.0 |
Draw line at a 90.0° angle from point C on line A-1 for 6.0 inches, label end point C1 |
|
| 17.0 |
Draw line at a 90.0° angle from point D on line A-1 for 6.0 inches, label end point D1 |
|
| 18.0 |
Draw line at a 90.0° angle from point E on line A-1 for 6.0 inches, label end point E1 |
|
| 19.0 |
Draw line at a 90.0° angle from point F on line A-1 for 6.0 inches, label end point F1 |
|
| 20.0 |
Draw line at a 90.0° angle from point G on line A-1 for 6.0 inches, label end point G1 |
|
| 21.0 |
Draw line at a 90.0° angle from point H on line A-1 for 6.0 inches, label end point H1 |
|
| 22.0 |
Draw line at a 90.0° angle from point I on line A-1 for 6.0 inches, label end point I1 |
|
| 23.0 |
Draw line at a 90.0° angle from point J on line A-1 for 6.0 inches, label end point J1 |
|
| 24.0 |
Draw line at a 90.0° angle from point K on line A-1 for 6.0 inches, label end point K1 |
|
| 25.0 |
Draw line at a 90.0° angle from point FL on line A-1 for 6.0 inches, label end point FL1 |
|
| 26.0 |
Draw line at a 90.0° angle from point SLL on line A-1 for 6.0 inches, label end point SLL1 |
|
| 27.0 |
Place point Heel on line A-2 at 3.0 inches from A |
|
| 28.0 |
Draw line at a 270.0° angle from point Heel on line A-2 for A-SLL, label end point Toe |
|
| 29.0 |
Place origin point A, draw axis |
|
