Style Name: Men's Derby, straight toe cap
created by: romango
Source: Koleff
Base Style: The Koleff STANDARD for Men's Shoes

view larger image

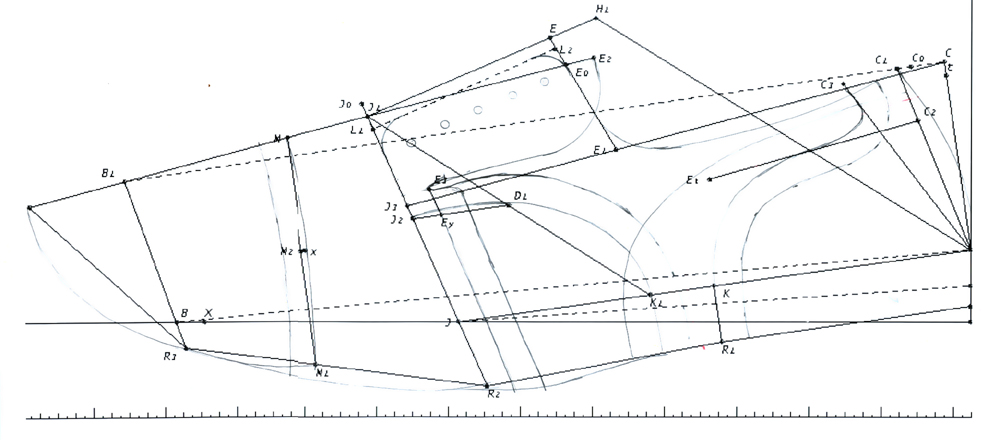

curved line drawing example


Operations
Base style: The Koleff STANDARD for Men's Shoes show operations
35.0 Place point K1 on line J-K at 1/4 of J-K from K
36.0 Draw solid line between J1 and K1
37.0 Place point D1 on line J1-K1 at 1/2 of J1-K1 from J1
38.0 Draw solid line between J2 and D1
39.0 Draw line at a -90.0 angle from point J1 on line J1-E for 0.5 cm, label end point L1 book value is 4mm
40.0 Draw line parallel to J1-E starting at L1 for J1-E, label end point L2
41.0 Draw line at a 180.0 angle from point J1 on line B1-J1 until it intersects with line E-E1, label end point E0
42.0 Extend line J1-E0 for 1.0 cm, label end point E2
43.0 Place point C2 on line H-C1 at 2/7 of H-C1 from C1
44.0 Draw line parallel to E1-C starting at C2 for 3.0 inches, label end point Et
45.0 Place point C3 on line C1-J3 at C1-C2 from C1
46.0 Draw solid line between C3 and H
47.0 Place point Ey on line J2-D1 at 1.0 cm from J2
48.0 Draw line parallel to J2-J1 starting at Ey for 1.0 cm, label end point E3
49.0 Place point M on line B1-J1 at 2/3 of B1-J1 from B1
50.0 Draw line at a -83.0 angle from point M on line B1-J1 until it intersects with line R2-R3, label end point M1
51.0 Place point M2 on line M-M1 at 1/2 of M-M1 from M
52.0 Draw line at a 90.0 angle from point M2 on line M-M1 for 0.15 cm, label end point x
